Vessels Division
Water Hammer Vessels

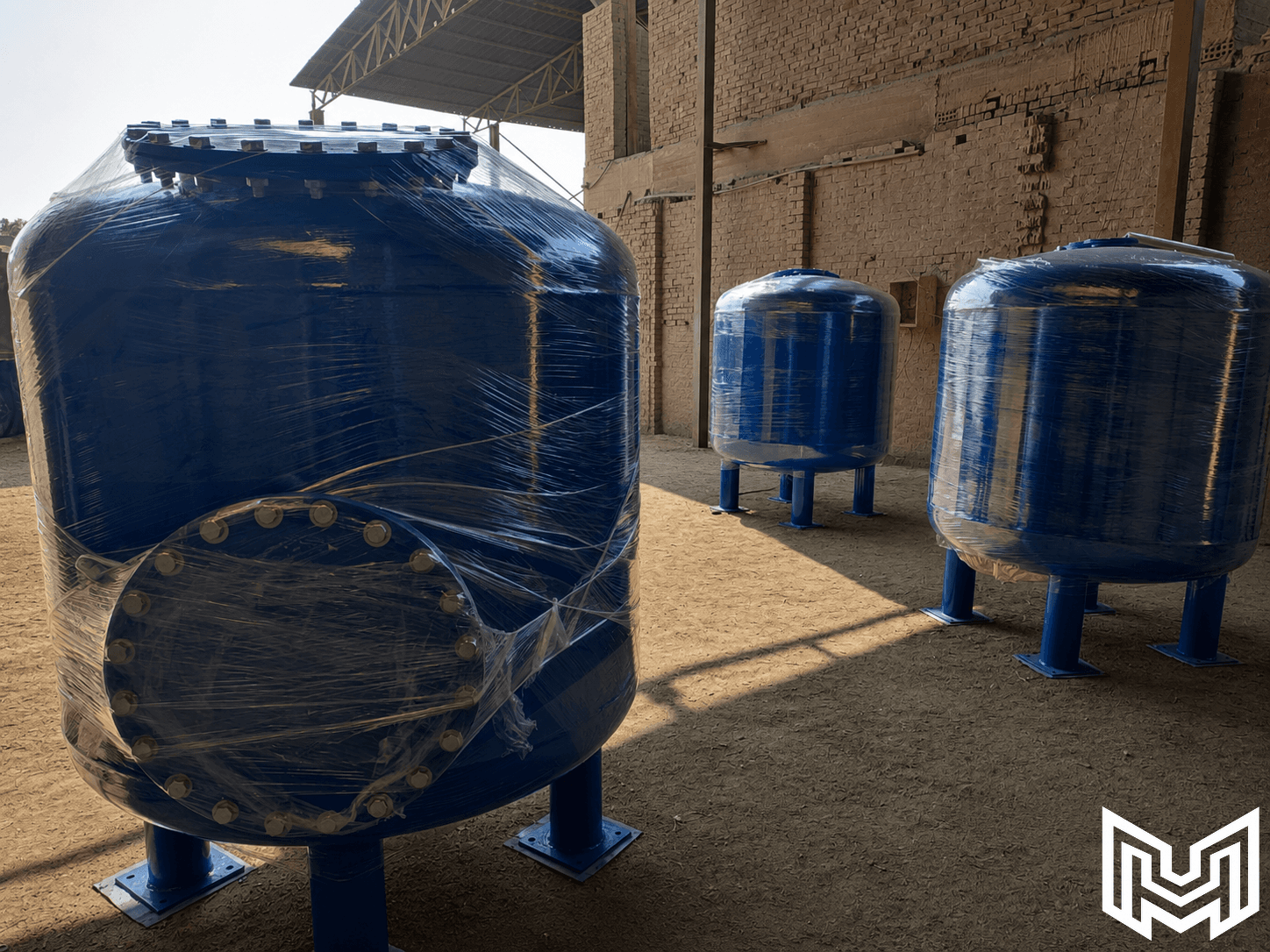

Metal Home for Industry fabricates carbon-steel water hammer vessels (surge vessels) for pumping stations and long transmission mains, in vertical and horizontal configurations with capacities up to 100 m³. The vessels are built at our factory in 15 May City, Cairo, to the consultant's specification and to ASME Section VIII pressure-vessel practice.
Manufactured in 15 May City, Cairo, Egypt
About this product
When a pump trips or a valve closes quickly, the moving column of water decelerates suddenly and creates a pressure surge, known as water hammer, that can rupture pipes, damage pumps, and lift pipe supports. A surge vessel connected to the discharge header holds a cushion of compressed air or a bladder that absorbs that energy, keeping the line pressure within safe limits and protecting the whole network.
Our vessels are supplied with the connection nozzles, level gauges, air-compressor connections, drains, and support saddles or legs specified by the hydraulic study, and are delivered with an internal epoxy coating suitable for potable water. We have installed surge vessels alongside our tanks and piping at the Giza and Qalubia water stations, and we can fabricate matching headers, elbows, and flanges so the complete pump-room package comes from one workshop.
Overview & Features
- Surge protection for long pipelines
- Air-bladder or direct contact designs
- Heavy-duty construction
- Precision pressure monitoring ports
Customization Options
- Capacities up to 100 m3
- Vertical or horizontal orientation
- High-grade bladder materials for specific fluids
Technical Specifications
Standards & QA/QC
- Ultrasonic Thickness Measurement
- Radiographic testing for structural welds
- Hydrostatic test
Industries Served
Frequently Asked Questions
Do you perform surge analysis?
We focus on the mechanical fabrication of the vessel based on the surge analysis provided by the pipeline consultant.
Projects where we supplied this product
Client references from our portfolio that include this product line.
Giza Water and Wastewater Company2009Supply and installation of water storage tanks, piping systems, specialized steel fittings, and electromechanical equipment for the Giza water stations (2009).
Qalubia Water and Wastewater Company2009Supply and installation of storage tanks, piping networks, specialized steel fittings, and mechanical components at the Tokh water station in Qalubia (2009).
Suez Canal Governorates Water and Wastewater Company2002Supply and installation of water filter tanks, sedimentation basins, clarifiers, and pumps for the Fayed water treatment plant in Ismailia Governorate, inaugurated in the presence of the Governor of Ismailia (2002).
Related products
Request a Quote (RFQ)
Need this product manufactured to specific standards? Contact us directly to get a detailed technical and financial proposal for your project.
